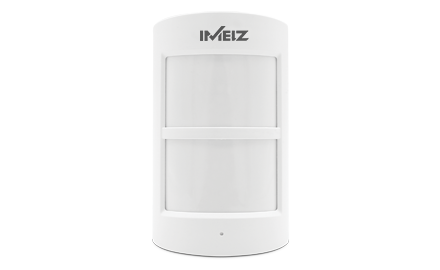

PIR Motion Detection Sensor M5

When human body’s infrared spectrum is detected, it will send alarm signal to the control panel

Specification

Power Supply ：DC 3V (AA 1.5V LR6 battery x 2 pcs)
Static Current <50 uA
Alarm Current <9.5 mA
Detection Scope 8m/110°
Transmitting Distance <80 m (open area/no interference)
Radio Frequency ：315 MHz or 433.92 MHz
Housing Material： ABS Plastic
Operating Condition Temperature： 0°C~+55°C
Relative Humidity <80% (non-condensing)
Detector Dimensions： 100 x 59 x 43 mm (L x W x H)
Bracket Dimensions：52 x 30 x 26.5 mm (L x W x H)
